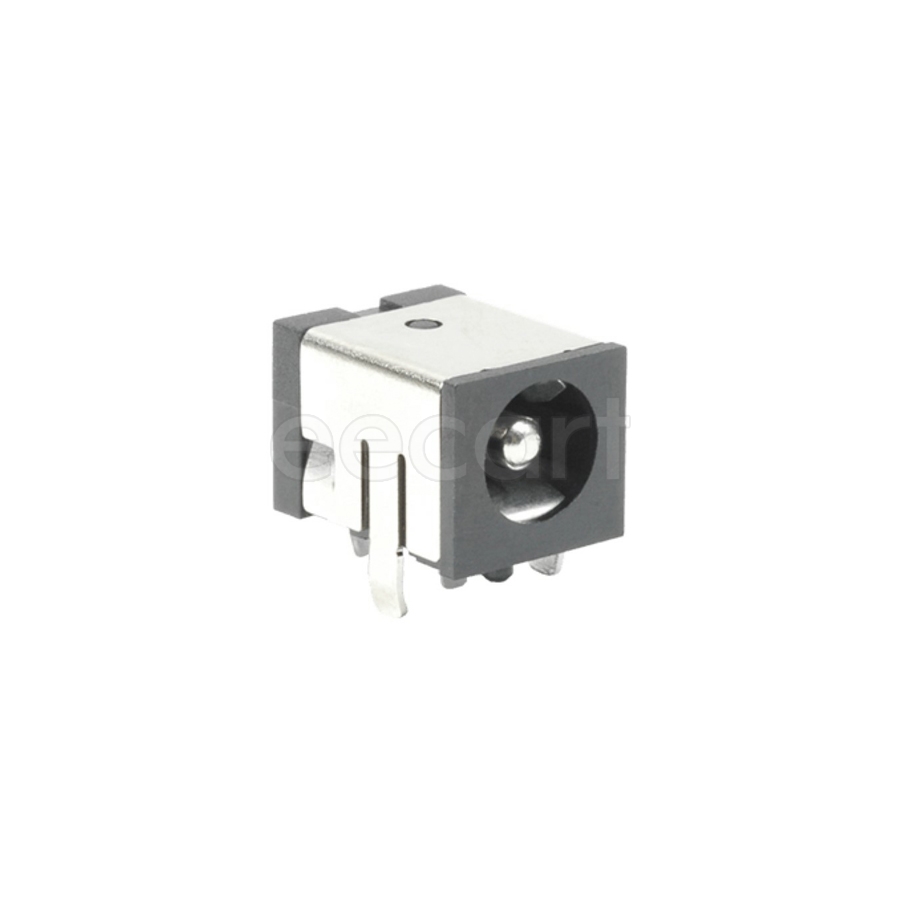

PJ-063BH
Manufacturer:
Same Sky
Mfr.Part #:
PJ-063BH
Datasheet:
Description:
Power Connectors Through Hole Current Rating:8 A Voltage Rating:24 V Jack Male
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating | 24 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Nickel |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 8 A |
| Flammability Rating | UL94V-0 |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Gender | Male |
| Shielding | Shielded |
| Housing Material | Thermoplastic |
| Outside Diameter | 6.5 mm |
| Housing Color | Black |
| Inside Diameter | 2.5 mm |
| Number of Conductors | 2 |
| Contact Gender | Male |
| Schedule B | 8536695050 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Connector Type | Jack |
| Packaging | Bag |
Stock: 1149
Distributors
pcbx
pcbxUnit Price$0.89511
Ext.Price$0.89511
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.89511 | $0.89511 |
| 10 | $0.77627 | $7.76270 |
| 25 | $0.71301 | $17.82525 |
| 50 | $0.69506 | $34.75300 |
| 100 | $0.68223 | $68.22300 |
| 300 | $0.60529 | $181.58700 |
| 500 | $0.56322 | $281.61000 |
| 1000 | $0.52407 | $524.07000 |
